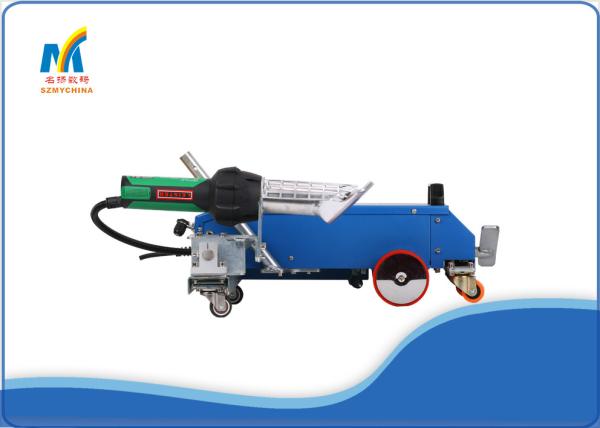

Water Proof Plastic Welder Machine For Vinyl Sign Printing , PVC Welding Machine

Brand Name : MY

Model Number : TOP 3400 B

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Hidden

Payment Terms : Western Union, T/T, MoneyGram,Paypal

Supply Ability : 9900 sets / month

Delivery Time : 2-5 working days

Packaging Details : Weight : 34kg , size : 60*48*38 cm , pack : wooden box

Power : 3600 W

Frequency : 50-60 HZ

Welding area : 2-5 cm

Work speed : 6-15 meters /min

Welding thickness : 0.22-2 mm

Welding gun : Original Leister Hot air gun from Swiss

Machine voltage : 110 V -240 V

Temperature scope : 20-600 degree

Contact Now

50-60HZ Roofing / Water Proofing / Flex Banner Welding Machine

/ Outdoor Materials Air Welding machine

Product Description :

The automatic banner welding machine is designed to welding outdoor materials.

The automatic welding machine can weld advertising inkjet fabric, inkjet cloth, light box cloth, thick PVC cloth, mesh cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, PP plastic materials that can be hot melted.

This machine is more suited to fast welding of large banners. More details as below :

Character for TOP3400B pvc flex banner hot air welding machine:

► Equipped 3400W Leister heat gun from Swiss, lifetime can reach 6-8 years

► Has landing gear, Handrail, Laser, Light, operation more convenient

► Digital display: Set &Actual temperature, walk speed can see clearly.

► Adopt digital constant temperature technology, temperature fluctuation±1 degree

► Big power, Strong wind, welding speed can reach 15m/min

► Auto-Dormancy Function, protect heating element well, let machine lifetime longer

Operation Step :

1. Make the cloth for seaming flat and put it underneath. Fix both ends by adhesive tape or something else.

2. The overlap width of the two pieces is about 3 mm, the width of the nozzle of hot seaming machine.

3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle. The nozzle also need align with side of upper piece of cloth.

4. Switch on the motor power and then adjust speed.

5. Turn on the movement switch.

6. Press heating power key to adjust temperature.

7. Turn the bar by anticlockwise to fix the position to startup automatic movement. The machine will go along with the overlap path by itself.

8. Turn the bar by clockwise to cease the automatic work.

9. The operator should control the moving direction and make sure the nozzle connect both with upper and under piece cloth.

Specification:

♦ Welding Power : 3600 W

♦ Welding Voltage : 220-240V

♦ Welding Temperature : 350-400 degree

♦ Welding Speed : 6 -15 meters / min

♦ Welding Thickness : 0.22 -2 mm

♦ Welding Width : 2-5 cm

♦ Welding Frequency : 50-60 HZ

♦ Welding Warranty : one year

♦ Welding heat gun : Import Original Leister Hot air gun from Swiss

- It also can avoid leakage .

- It is small, light and easy to operate .

- It uses advanced PID control technology, and adjust the power to make the temperature more constant

automatically, the fluctuation is within 1 degrees. This function can make the welding result stronger .

- It is equipped with temperature feedback sensor. The sensor can always monitoring the temperature of the outlet to keep a constant temperature .

F A Q :

1. Q : How long can i used the Heat gun ?

A : It use Import Original Leister heat gun , can use 6-8 years

2. Q : Does it Automatic Work ?

A : Yes . It is automatic welding , Speed can be controlled ,and with a long handle .

3. Q : What's the advantages ?

A : It is 3600W high power welding machine , and used the original Leister heat gun ,longer life .

4. Q : What's the MOQ ?

A : The MOQ is one set of Welding Machine

5. Q : How can i pay ?

A : Our company accept : T/T ,Western Union ,Paypal .

Water Proof Plastic Welder Machine For Vinyl Sign Printing , PVC Welding Machine
